Particles
//
// Particle.java
//
import processing.core.*;
// The Particle class has all the code to display and move a single
// particle. A particle is "dead" if it has fallen off screen.
public class Particle
{
public Particle(PApplet p,
PVector position, PVector velocity,
float radius, int color)
{
this.p = p;
this.position = position.copy();
this.velocity = velocity.copy();
this.acceleration = new PVector(0, .1f); // gravity
this.radius = radius;
this.color = color;
}
public void display()
{
p.fill(color);
p.noStroke();
p.ellipse(position.x, position.y, 2*radius, 2*radius);
position.add(velocity);
velocity.add(acceleration);
}
public boolean isDead()
{
return position.y > p.height + 100;
}
private PApplet p;
private PVector position;
private PVector velocity;
private PVector acceleration;
private float radius;
private int color;
}
//
// ParticleGenerator.java
//
import processing.core.*;
import java.util.*;
// The ParticleGenerator class has an ArrayList of Particles. The
// display() function displays all the particles in the list,
// creates new particles based on the specified rate and direction,
// and removes old particles from the list.
public class ParticleGenerator
{
public ParticleGenerator(PApplet p,
PVector position,
PVector direction,
float rate)
{
this.p = p;
this.position = position.copy();
this.direction = direction.copy();
this.rate = rate;
this.particles = new ArrayList<Particle>();
}
public void display()
{
// display all particles in the list
for (Particle b : particles)
b.display();
// create new particles, remove old particles
createParticles();
killDeadParticles();
// draw box
p.fill(128);
p.rectMode(PApplet.CENTER);
p.rect(position.x, position.y, 50, 50);
// draw particle count
p.fill(255);
p.textSize(20);
p.textAlign(PApplet.CENTER, PApplet.CENTER);
p.text(particles.size(), position.x, position.y);
}
public void setPosition(float x, float y)
{
position.x = x;
position.y = y;
}
private void killDeadParticles()
{
// remove any dead particles from the list
for (int i=particles.size()-1; i>=0; i--)
if (particles.get(i).isDead())
particles.remove(i);
}
private void createParticles()
{
// add new particles to the list, based on the rate
if (rate < 1)
{
if (p.random(0,1)<rate)
createParticle();
}
else
{
for (int i=0; i<rate; i++)
createParticle();
}
}
private void createParticle()
{
// create a single particle, moving in the specified
// direction (with a little random bump), with random size
// and color, and add it to the list
PVector velocity = direction.copy();
PVector dv = PVector.random2D();
velocity.add(dv);
float radius = p.random(5, 10);
int color = p.color(0, p.random(256), p.random(256), p.random(256));
Particle b = new Particle(this.p,
this.position,
velocity,
radius,
color);
particles.add(b);
}
private PApplet p;
private PVector position;
private PVector direction;
private float rate;
private ArrayList<Particle> particles;
}
//
// ParticleDemo.java
//
import processing.core.*;
import java.util.*;

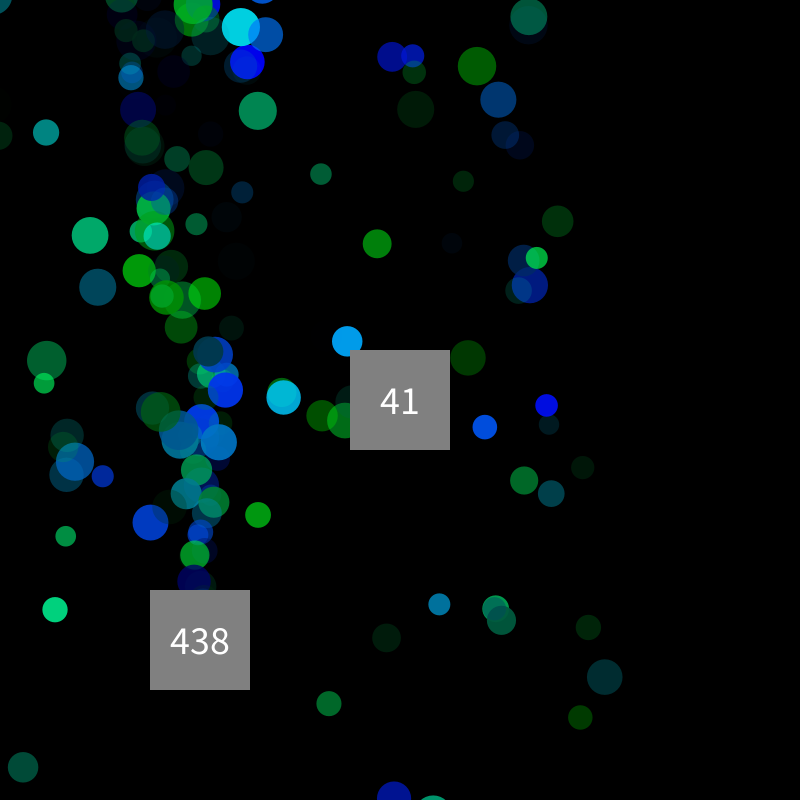

// ParticleDemo is a PApplet that has two ParticleGenerator
// objects, a fountain and a rocket. The fountain and rocket
// differ in the rate and direction of the particles they
// generate.
public class ParticleDemo extends PApplet
{
public void settings()
{
size(800, 800);
}
public void setup()
{
fountain = new ParticleGenerator(this,
new PVector(width/4, height*.8f),
new PVector(0, -10), // direction: up
2f);
rocket = new ParticleGenerator(this,
new PVector(mouseX, mouseY),
new PVector(-5, 0), // direction: left
.5f);
}
public void draw()
{
background(0);
noCursor();
fountain.display();
rocket.display();
rocket.setPosition(mouseX, mouseY); // move with mouse
}
private ParticleGenerator fountain;
private ParticleGenerator rocket;
public static void main(String[] args)
{
PApplet.main("ParticleDemo");
}
}
